LabSat Real Time

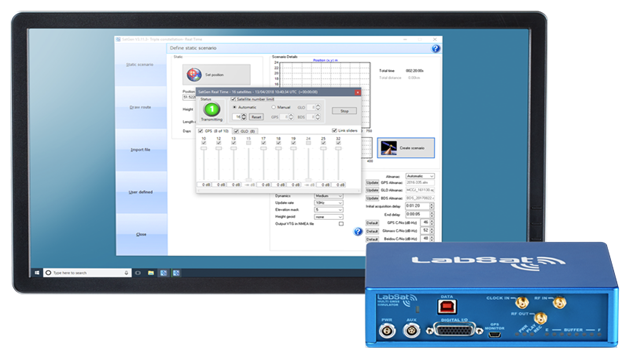

์‹ค์‹œ๊ฐ„ ์œ„์„ฑ ์‹œ๋ฎฌ๋ ˆ์ดํ„ฐ : SatGen RT SW + LabSat RT HW

์›ํ•˜๋Š” ์œ„์น˜ ์†๋„,๊ณ ๋„,๋ฐฉํ–ฅ๋“ฑ์„ ์ •์˜ํ•œ ํ›„

์‹ค์‹œ๊ฐ„ ์œ„์„ฑ ์‹œ๋‚˜๋ฆฌ์˜ค๋ฅผ ์ƒ์„ฑ ํ…Œ์ŠคํŠธ ํ•  ์ˆ˜ ์žˆ๋Š” ์†”๋ฃจ์…˜


  • GPS, GLONASS or Beidou
  • ์‹ค์‹œ๊ฐ„ RF ์‹ ํ˜ธ ์ƒ์„ฑ
  • SatGen Software ํฌํ•จ
  • ์‹ ๋ขฐ์„ฑ ์žˆ๋Š” carrier to noise levels
  • Single or dual constellation

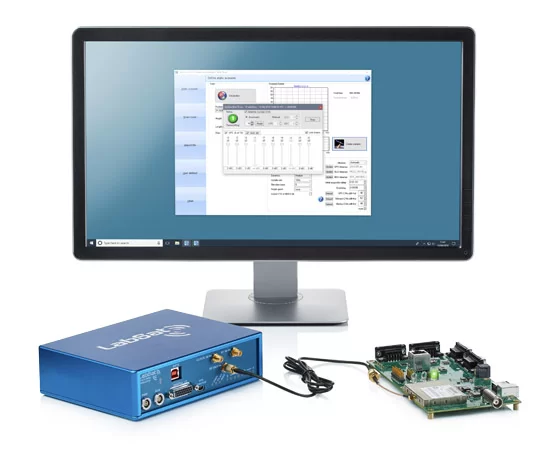

์‹ค์‹œ๊ฐ„ GPS ์‹œ๋ฎฌ๋ ˆ์ดํ„ฐ๋ฅผ ์‚ฌ์šฉํ•˜๋Š” ์ด์œ

  • ์ „์„ธ๊ณ„ ์–ด๋Š” ๊ณณ์ด๋“ ๊ฐ„์— ์‹ค์‹œ๊ฐ„ GPS RF Signal์„ ์ƒ์„ฑํ•˜์—ฌ ํ…Œ์ŠคํŠธ ๊ฐ€๋Šฅ.
  • LabSat RT๋Š” Realistic Carrier to Noise levels ๊ณผ signal์„ ์ƒ์„ฑ ํ•ฉ๋‹ˆ๋‹ค.
  • SatGen RT SW๋Š” ์œ„์น˜, ๊ฒฝ๋กœ, ์†๋„, ๋‚ ์งœ, ์‹œ๊ฐ„ ๋ฐ  C/NO ๊ฐ’์„ ์ •์˜ ํ•  ์ˆ˜ ์žˆ์Šต๋‹ˆ๋‹ค.
  • Single Constellation : 1 or 2-bit
  • Dual Constellation signal : 1-bit each

์‚ฌ์–‘์„œ

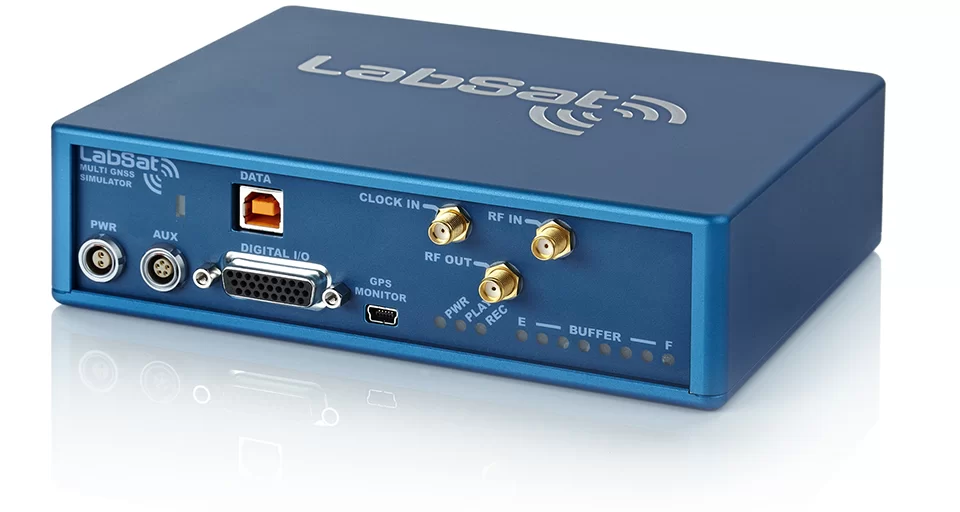

LabSat RT

Constellations
GPS L1, GLONAS L1, Galileo E1, BeiDou B1
Output Signal Level
Fixed -83dBm

Ability to vary the C/No levels for all or individual satellites during simulation

RF Channels
2
RF Channel Centre Frequency
Selectable
Number of Satellites Observed
All in view
Sampling Frequency
16.368MHz
Bandwidth
16 MHz
Quantisation
1 or 2 bit (I&Q)
Data Format
I & Q
Media Storage Included
External hard disk only
Active Antenna Voltage Supply
3.3 V
Reference Oscillator
Frequency Stability ±2.5 ppm TCXO / ±0.05 ppm OCXO (optional)
Temperature Stability ±0.05 ppm TCXO / ±0.01 ppm OCXO (optional)
Operating Voltage
8v to 30 VDC

์˜ต์…˜ ์‚ฌํ•ญ

LabSat RT Replay only

Dual constellation (GPS/Galileo, GLONASS, BeiDou) replay only


LabSat RT Record and Replay

Dual constellation (GPS/Galileo, GLONASS, BeiDou) Record and Replay
