Securing Position, Navigation and Timing Assets

(Protecting PNT against Jamming)


Securing Position, Navigation and Timing Assets

(Protecting PNT against Jamming)


전세계적으로 PNT서비스를 제공하기 위해 GNSS에 크게 의존을 하고 있으며, 다양한 분야에서 GNSS장치가 사용되고 있습니다.


방산 분야 : 드론, 자동차, 항공, 미사일 시스템

운송 분야 : 공황, 비행기, 선박, 기차

통신 및 IT분야 :  데이터센터, 3G, 4G, 5G 네트웍

기타 : 법 집행 기관, 화재 및 경찰 구급차 등등.

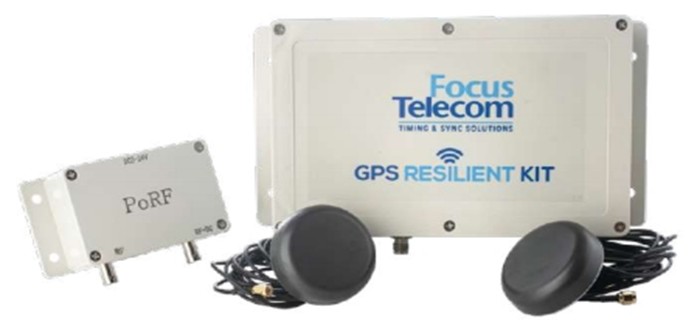

         GPS Resilient(방어) Kit

         Protecting PNT Against Jamming


         Key Features


  • 최대 방어를 위한 Interference 필터링 알고리즘 특허
  • 최소 파워 소모
  • 검증된 OtoSphere™ 기술
  • 재밍 공격을 실시간으로 보고하는 클라우드 기반 모니터링
  • 경제적이며 작고 견고한 제품
  • Latency: 100ns ± 15ns (fixed)
  • Insertion loss: 6.5dB ±2dB
  • Protected signal: 1575.42 MHz (GPS L1 C/A code)
  • Pass-through signals:
  • L5, Galileo E1B/C, GLONASS G1,  Beidou B1 & B2, QZSS L1C, E5A

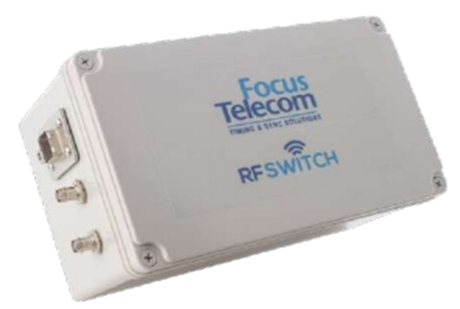

      RF Switch

      GPS 취약성으로 부터 PNT 보호


        Key Features


  • Real bi-directional isolation안테나 분리에 대한 프로그래밍 가능
  • GNSS 즉각적인 연결 및 해제를 위한
  • 원격접속 가능
  • Physical disconnection response
  • time <10ms
  • GUI response time <1s
  • Supports full L1 & L2 GNSS

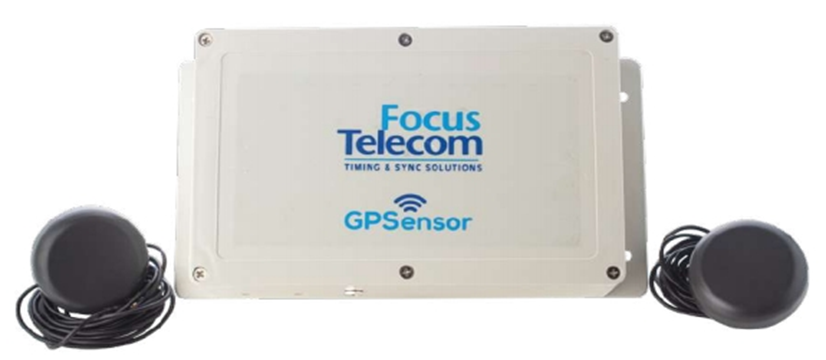

       GPSensor

       PNT Jamming 위협 모니터링 장치


         Key Features


  • 편리한 설치 및 사용법
  • 작고 견고한 설계
  • 재밍에 대한 정기적인 모니터링
  • 경고 알림(GNSS 주파수 교란, 기만)
  • 공격 받고 있는 사이트를 쉽게 구분
  • 공격의 강도와 시간 변화
  • 공격 기간
  • 매일/주간 GNSS 및 셀룰러데이터 표시

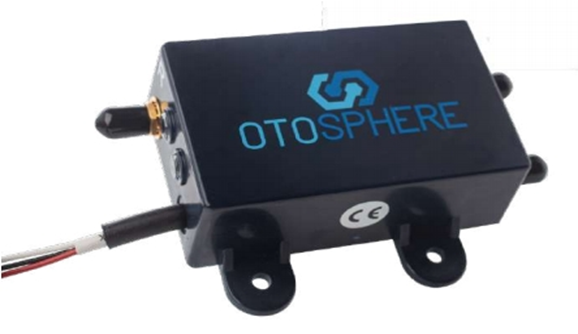

       OtoSphere

       GNSS Jamming Protection


        Key Features


  • Interference Filtering Algorithm
  • Small form factor: < 70x48x24mm, 150g
  • Minimal power consumption: <0.8W (nominal)
  • IP67 waterproof rating
  • Automotive temperature grade compliant
  • Protected frequency: GPS L1 (C/A Code)
  • Passthrough frequencies: GPS L5 & Glonass
  • R1 (BeiDou Optional)
  • Latency: 100ns ± 15ns (fixed)
  • Insertion loss: ±2dB
